16MnR厚壁膨胀节
16MnR厚壁膨胀节通常用于泵，罐，压缩机，汽轮机等容器出口处，以减少对设备的作用力，厚度范围为3.0~22mm,不同材料可满足不同的温度要求。对于在低压下操作的大直径管道系统，厚壁膨胀节是最经济有效的选择。
技术参数
DN | 外径 | 波高 | 圆半径 | 长度 | 壁厚/单层波纹管位移 （mm/mm） | |||
mm | mm | mm | R | mm | Q235A | SS304 | SS316L | SS321 |
150 | 159 | 30 | 12 | 4R + 5S | 3.0 / 0.7 | 0.8 / 2.9 | 0.8 / 3.0 | 0.8 / 2.9 |
150 | 159 | 45 | 20 | 4R + 5S | 3.0 / 1.1 | 0.8 / 3.3 | 0.8 / 3.5 | 0.8 / 3.4 |
200 | 219 | 40 | 15 | 4R + 5S | 3.0 / 1.1 | 0.8 / 4.4 | 0.8 / 4.5 | 0.8 / 4.4 |
200 | 219 | 55 | 20 | 4R + 5S | 3.0 / 1.7 | 1.2 / 5.4 | 1.0 / 5.8 | 1.0 / 5.6 |
250 | 273 | 50 | 20 | 4R + 5S | 3.0 / 1.7 | 1.0 / 5.2 | 1.0 / 5.4 | 1.0 / 5.3 |
250 | 273 | 65 | 25 | 4R + 5S | 3.0 / 2.0 | 1.2 / 6.2 | 1.2 / 6.5 | 1.2 / 0.3 |
300 | 325 | 60 | 20 | 4R + 5S | 3.0 / 2.3 | 1.5 / 6.9 | 1.2 / 7.4 | 1.2 / 7.2 |
300 | 325 | 80 | 30 | 4R + 5S | 3.0 / 2.6 | 1.5 / 7.7 | 1.5 / 8.0 | 1.5 / 7.8 |
350 | 377 | 70 | 25 | 4R + 5S | 3.0 / 2.6 | 1.5 / 8.0 | 1.5 / 8.3 | 1.5 / 8.1 |
350 | 377 | 80 | 30 | 4R + 5S | 3.0 / 2.6 | 2.0 / 8.0 | 1.5 / 8.8 | 1.5 / 8.5 |
400 | DN + 2S | 70 | 30 | 4R + 5S | 3.0 / 2.6 | 1.5 / 7.3 | 1.2 / 7.6 | 1.2 / 7.4 |
400 | DN + 2S | 95 | 30 | 4R + 5S | 3.0 / 3.6 | 3.0 / 9.6 | 2.0 / 11.0 | 2.0 / 10.7 |
450 | DN + 2S | 80 | 30 | 4R + 5S | 3.0 / 3.2 | 2.0 / 8.7 | 1.5 / 9.4 | 1.5 / 9.1 |
450 | DN + 2S | 105 | 30 | 4R + 5S | 3.5 / 4.3 | 3.0 / 12.1 | 2.5 / 12.6 | 2.5 / 12.4 |
500 | DN + 2S | 85 | 30 | 4R + 5S | 3.0 / 3.5 | 2.0 / 10.2 | 2.0 / 10.6 | 2.0 / 10.3 |
500 | DN + 2S | 105 | 30 | 4R + 5S | 3.5 / 4.5 | 3.0 / 12.6 | 2.5 / 13.6 | 2.5 / 13.2 |
550 | DN + 2S | 95 | 35 | 4R + 5S | 3.0 / 3.8 | 2.0 / 10.4 | 2.0 / 10.7 | 2.0 / 10.4 |
550 | DN + 2S | 105 | 35 | 4R + 5S | 3.5 / 4.5 | 3.0 / 12.2 | 2.5 / 12.9 | 2.5 / 12.6 |
600 | DN + 2S | 105 | 35 | 4R + 5S | 3.0 / 4.1 | 2.5 / 12.3 | 2.0 / 12.7 | 2.0 / 12.4 |
600 | DN + 2S | 125 | 35 | 4R + 5S | 3.5 / 5.6 | 3.0 / 16 | 3.0 / 16.8 | 2.0 / 16.2 |
650 | DN + 2S | 115 | 35 | 4R + 5S | 3.0 / 5.0 | 3.0 / 14.1 | 2.5 / 14.6 | 2.5 / 14.2 |
650 | DN + 2S | 125 | 35 | 4R + 5S | 3.5 / 5.7 | 3.0 / 16.6 | 3.0 / 17.3 | 2.0 / 16.8 |
700 | DN + 2S | 125 | 35 | 4R + 5S | 4.0 / 5.7 | 3.0 / 17.4 | 3.0 / 13.1 | 3.0 / 17.3 |
750 | DN + 2S | 125 | 35 | 4R + 5S | 4.0 / 6.1 | 3.0 / 18.1 | 3.0 / 18.8 | 3.0 / 18.3 |
800 | DN + 2S | 125 | 35 | 4R + 5S | 4.0 / 6.2 | 3.0 / 18.1 | 3.0 / 18.8 | 3.0 / 18.3 |
900 | DN + 2S | 125 | 35 | 4R + 5S | 4.0 / 6.4 | 3.0 / 19.6 | 3.0 / 20.4 | 3.0 / 19.8 |
1000 | DN + 2S | 150 | 45 | 4R + 5S | 4.0 / 7.6 | 3.5 / 21.4 | 3.5 / 22.3 | 3.5 / 21.6 |
*以上参数按GB / 16749-1997设计。

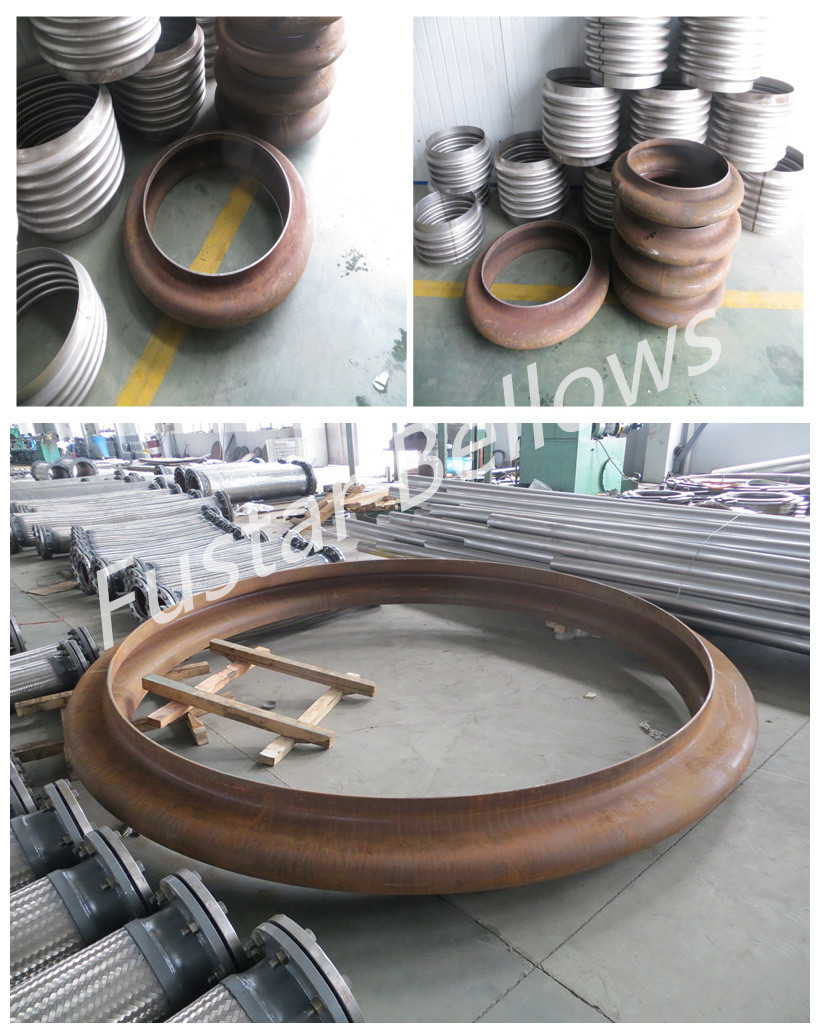

16MnR厚壁膨胀节图片
