DN25-DN2000
Fustar
73072900

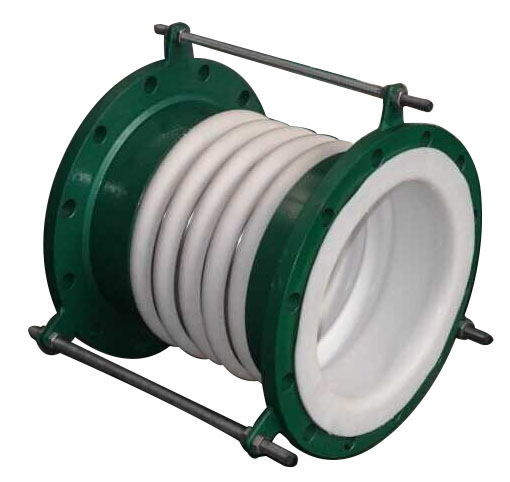

纯四氟乙烯PTFE补偿器
 |  |

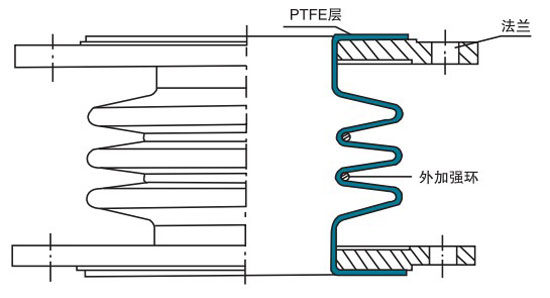

| 纯四氟乙烯PTFE补偿器 | 结构图 |
四氟乙烯补偿器技术参数
| 规格 DN mm | 三波补偿能力 | 工作压力 | 3 波长 L mm | 连接法兰尺寸 | ||||||||
| 轴向 △X mm | 横向 △Ymm | 角 △θ | 内压 | 负压 | PN0.6Mpa | PN1.0Mpa | ||||||
| 02-1 | 02-2 | TF02-1 | TF02-2 | Kpa | K | n-M | K | n-M | ||||
| 25 | 12 | 8 | 10 | 20 | 0.6 | 0.7 | 57 | 65 | 75 | 4-M10 | 85 | 4-M12 |
| 32 | 14 | 12 | 16 | 20 | 0.6 | 0.7 | 52 | 70 | 90 | 4-M12 | 100 | 4-M16 |
| 40 | 17 | 14 | 18 | 20 | 0.55 | 0.6 | 47 | 75 | 100 | 4-M12 | 110 | 4-M16 |
| 50 | 20 | 17 | 22 | 20 | 0.55 | 0.6 | 43 | 82 | 110 | 4-M12 | 125 | 4-M16 |
| 65 | 22 | 20 | 26 | 20 | 0.55 | 0.6 | 38 | 88 | 130 | 4-M12 | 145 | 4-M16 |
| 80 | 24 | 24 | 32 | 20 | 0.5 | 0.6 | 33 | 92 | 150 | 4-M16 | 160 | 8-M16 |
| 100 | 26 | 25 | 33 | 20 | 0.5 | 0.6 | 28 | 95 | 170 | 4-M16 | 180 | 8-M16 |
| 124 | 29 | 25 | 33 | 20 | 0.4 | 0.5 | 24 | 105 | 200 | 8-M16 | 210 | 8-M16 |
| 150 | 32 | 20 | 26 | 20 | 0.4 | 0.5 | 18 | 115 | 225 | 8-M16 | 240 | 8-M20 |
| 200 | 40 | 20 | 26 | 20 | 0.35 | 0.4 | 17 | 125 | 280 | 8-M16 | 295 | 8-M20 |
| 250 | 42 | 20 | 27 | 15 | 0.3 | 0.35 | 14 | 135 | 335 | 12-M16 | 350 | 12-M20 |
| 300 | 44 | 20 | 27 | 15 | 0.3 | 0.35 | 13 | 145 | 395 | 12-M20 | 400 | 12-M20 |
| 350 | 46 | 20 | 27 | 15 | 0.2 | 0.25 | 13 | 150 | 445 | 12-M20 | 460 | |
| 400 | 46 | 20 | 27 | 15 | 0.1 | 0.1 | 11 | 160 | 495 | 16-M20 | 515 | 16-M22 |
| 450 | 48 | 12 | 16 | 15 | 0.1 | 0.1 | 11 | 180 | 550 | 16-M20 | 565 | 20-M22 |
| 500 | 48 | 12 | 16 | 15 | 0.08 | 0.1 | 11 | 200 | 600 | 20-M24 | 620 | 20-M27 |
| 600 | 49 | 12 | 16 | 15 | 0.05 | 0.06 | 10 | 220 | 705 | 24-M24 | 725 | 20-M27 |
| 700 | 50 | 12 | 16 | 15 | 0.05 | 0.06 | 10 | 240 | 810 | 24 M27 | ---- | ------ |
| 800 | 50 | 10 | 13 | 15 | 0.05 | 0.06 | 10 | 260 | 920 | 24 M27 | ---- | ------ |
| 900 | 50 | 10 | 13 | 15 | 0.03 | 0.035 | 9 | 280 | 1020 | 24 M27 | ---- | ------ |
| 1000 | 52 | 10 | 13 | 15 | 0.03 | 0.035 | 9 | 300 | 1120 | 28-M27 | ---- | ------ |
| 1200 | 52 | 8 | 10 | 15 | 0.03 | 0.035 | 7 | 320 | ---- | ------ | ---- | ------ |
| 1400 | 54 | 8 | 10 | 15 | 0.02 | 0.025 | 7 | 340 | ---- | ------ | ---- | ------ |
| 1600 | 54 | 8 | 10 | 15 | 0.01 | 0.01 | 7 | 360 | ---- | ------ | ---- | ------ |
纯PTFE膨胀节
正常压力：-0.01Mpa,-0.05Mpa,0.01Mpa,0.05Mpa,0.1Mpa,0.25Mpa,0.6Mpa,1Mpa;
公称通径：DN25~1600MM
工作温度：-50~+150℃,当超过150℃时,由供买双方共同协商解决。
四氟PTFE补偿器应用
四氟补偿器（亦称之为膨胀节），应用在具有强腐蚀性介质的管道系统，用于由于热胀冷缩引起的位移补偿和安装偏差。
